JPW-HSCCF

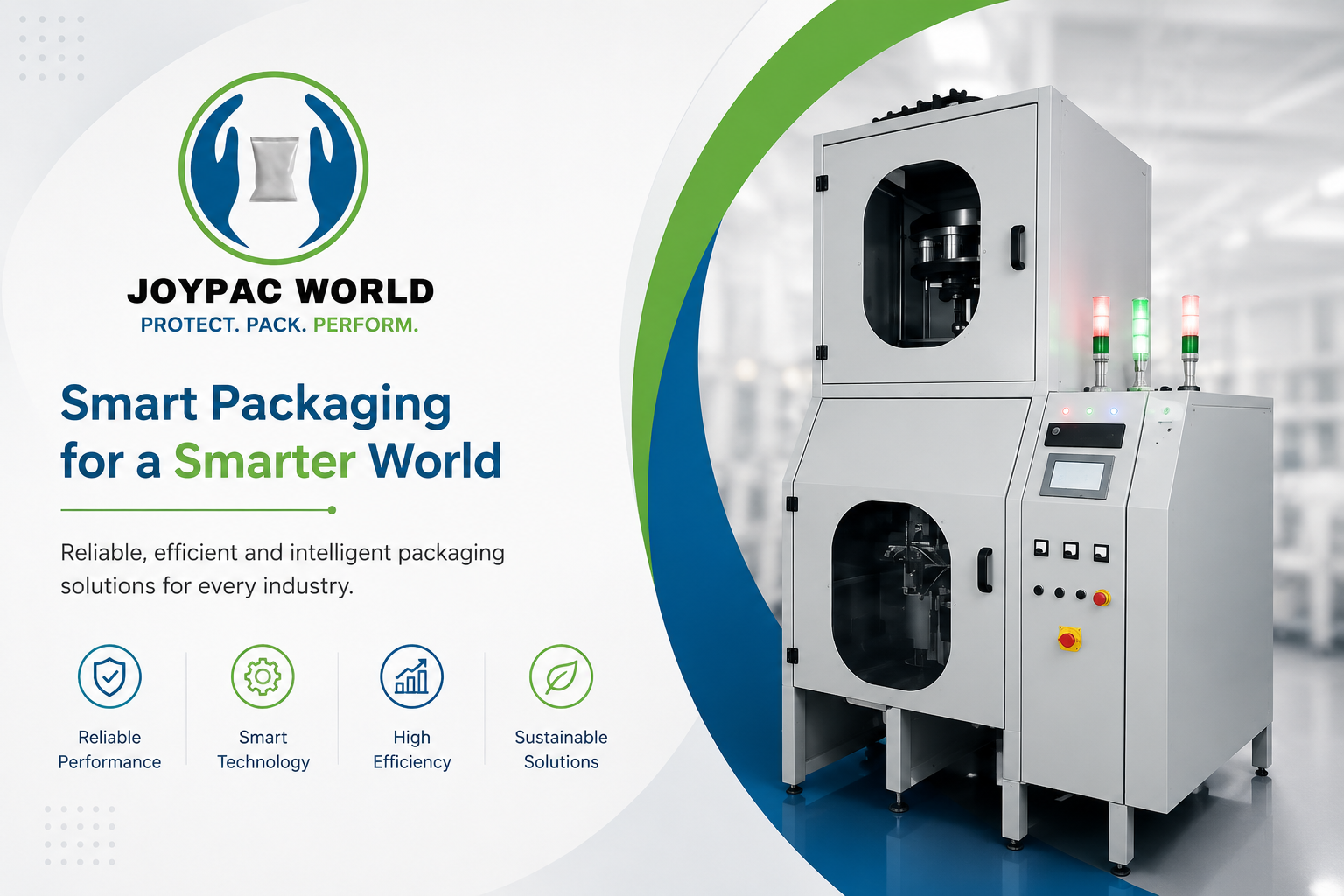

High Speed Collar Type Cup Filler Machine
The Joypac JPW-HSCCF collar-type cup filler packs granular products from 10 gm to 5 kg at up to 60 PPM using a volumetric cup filling system with ±0.5% accuracy.
Overview
High-output volumetric cup filler for granular groceries — dal, rice, sugar, salt, tea and detergent powders up to 5 kg.
Suitable products
Dal and pulses
Rice and groceries
Salt and sugar
Tea and detergent powders
Free-flowing granular products
Packing range
- 10 gm – 100 gm
- 200 gm – 1 kg
- 1 kg – 5 kg
Speed
- 55–60 PPM for 10 gm – 100 gm
- 45–50 PPM for 200 gm – 1 kg
- 15–25 PPM for 1 kg – 5 kg
Technical specifications — JPW-HSCCF
| Specification | Detail |
|---|---|
| Packing Range | 10 gm to 5 kg (three configurations) |
| Packing Speed | 55–60 PPM (10–100 gm), 45–50 PPM (200 gm–1 kg), 15–25 PPM (1–5 kg) |
| Sealing Type | Centre seal / Side seal |
| Filling System | Volumetric cup filler system |
| Pulling Mechanism | Belt driven servo / AC motors |
| Filling Accuracy | ±0.5% |
| Packaging Material | Heat sealable laminated roll |
| Sealing System | Pneumatic / servo |
| Machine Body | MS powder coated / stainless steel (as per client requirement) |
| Product Contact Parts | SS-304 / SS-316L |
| Power | 3 KW / 5 KW, 440 V, 3 phase, 50 Hz |
| Control System | PLC controlled system |
| Temperature Control | PID through PLC |
| Unwinding System | AC motor |
| Compressed Air | 8 CFM @ 6 kg |
| Dimensions (L×B×H) | 1524 × 2500 × 3050 mm (approx.) |
| Machine Weight | 1000 kg to 1500 kg (approx.) |
JPW-HSCCF — frequently asked questions
- What is the difference between a cup filler and an auger filler?
- A cup filler measures product by volume and suits free-flowing granules such as dal, rice and sugar. An auger filler meters powder with a screw and suits fine, aerated powders such as spices and atta.
- How fast is the JPW-HSCCF cup filler?
- Up to 55–60 pouches per minute on 10–100 gm packs and 45–50 PPM on 200 gm–1 kg packs.
- Can it pack detergent powder?
- Yes. The volumetric cup system handles detergent and washing powders; contact parts can be specified for abrasive products.
