JPW-HSCSAFHigh Speed Collar Type Servo Auger Filler Machine
Collar-type servo auger filler for all free-flowing and non-free-flowing powders, from 10 gm sachets to 10 kg bags.
- Range
- 10 gm – 100 gm +
- Speed
- 45–50 PPM for 10 gm – 200 gm
JPW-4HCWF
4 Head Collar Type Weigh Filler Machine
The Joypac JPW-4HCWF four-head weigh filler packs 10 gm to 1 kg pouches at 10–20 PPM with ±0.5% filling accuracy and PLC control.
Overview
Compact four-head weighmetric filler for mid-volume grocery, seed and dry-fruit packing up to 1 kg.
Suitable products
Dal, pulses and groceries
Salt, sugar and rice
Tea powders and detergents
Seeds and dry fruits
Chips
Packing range
- 10 gm – 100 gm
- 200 gm – 1 kg
Speed
- 10–20 pouches per minute
Technical specifications — JPW-4HCWF
| Specification | Detail |
|---|---|
| Packing Range | 10 gm – 100 gm, 200 gm – 1 kg |
| Packing Speed | 10–20 pouches per minute |
| Filling System | Weighmetric system |
| Pulling Mechanism | Belt driven system with AC motors |
| Filling Accuracy | ±0.5% |
| Packaging Material | Heat sealable laminated roll |
| Sealing System | Pneumatic / servo |
| Machine Body | MS powder coated / stainless steel |
| Product Contact Parts | SS-304 / SS-316L |
| Power | 5 KW, 3 phase |
| Control System | PLC controlled |
| Temperature Control | PID through PLC |
| Unwinding System | AC motor |
| Compressed Air | 8–12 CFM @ 6 kg bar |
| Dimensions (L×B×H) | 2100 × 2500 × 3000 mm (approx.) |
| Machine Weight | 1200 kg (approx.) |
JPW-4HCWF — frequently asked questions
- How is a 4-head weigh filler different from a 10-head weigher?
- A 4-head weigher is a lower-cost, lower-speed option at 10–20 PPM, ideal for units packing up to 1 kg with fewer SKUs; a 10/14-head weigher triples the output.
- Can this machine pack seeds and dry fruits?
- Yes. The weighmetric system handles seeds, dry fruits and granular groceries with ±0.5% accuracy.
Compare alternativesJPW-HSCSAF
JPW-HSCCF
JPW-SPCCF
Other Joypac machines to consider
JPW-HSCSAFJPW-HSCCFHigh Speed Collar Type Cup Filler Machine
High-output volumetric cup filler for granular groceries — dal, rice, sugar, salt, tea and detergent powders up to 5 kg.
- Range
- 10 gm – 100 gm +
- Speed
- 55–60 PPM for 10 gm – 100 gm

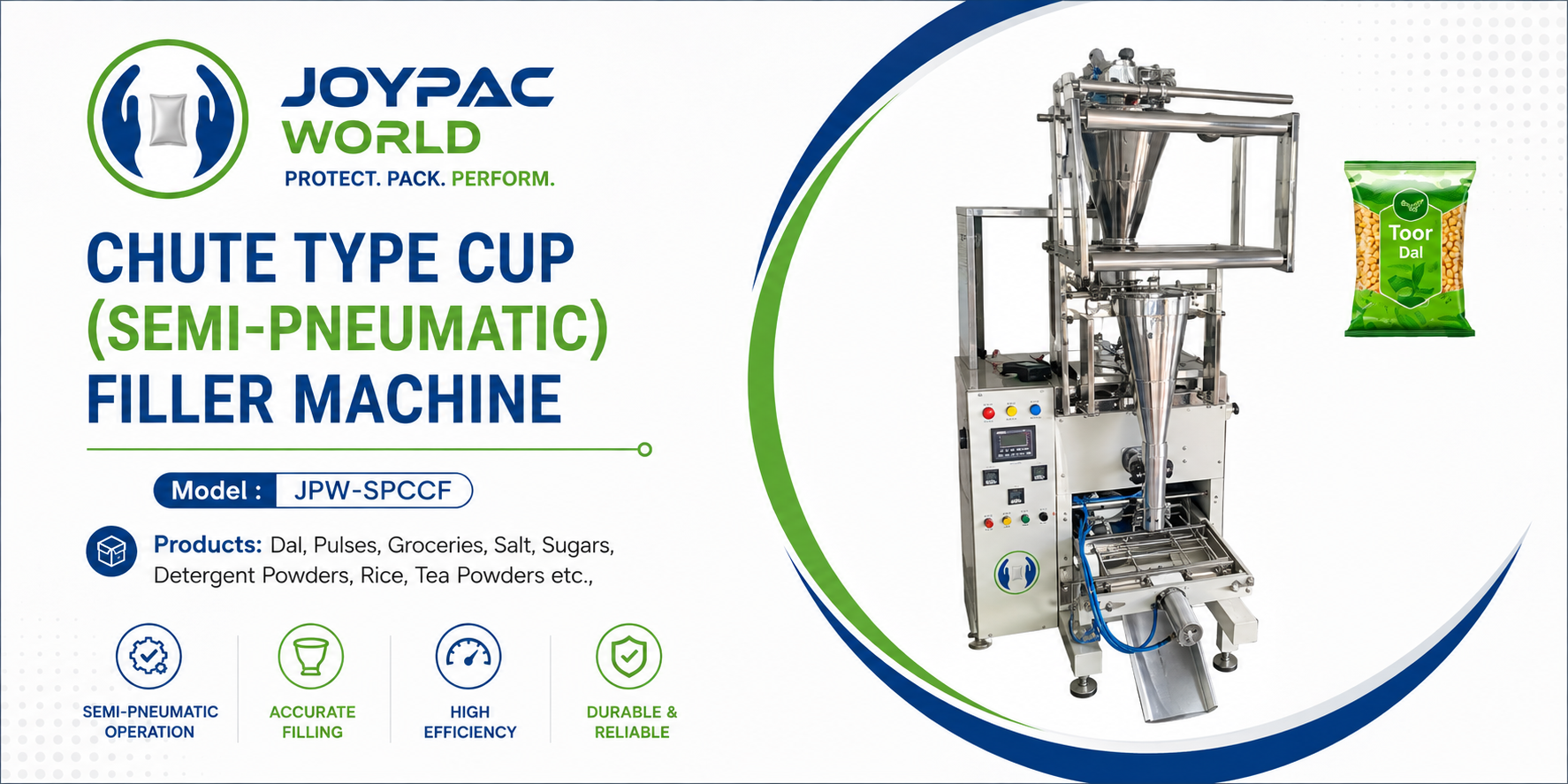

JPW-SPCCFChute Type Cup Filler Machine (Semi-Pneumatic)
Compact, cost-effective semi-pneumatic chute-type cup filler — an ideal entry point for small and mid-size packers.
- Range
- 10 gm – 100 gm +
- Speed
- 25–30 pouches per minute
