JPW-FWM
Flow Wrap Machine for Chocolate Bars
The Joypac World flow wrap machine (JPW-FWM) wraps chocolate bars, biscuits and candies at 80–250 packs per minute using heat-sealable BOPP, PET or CPP film with pillow-type, 3-side seal or centre seal formats.
Overview
Horizontal flow wrapper for chocolate bars, biscuits and candies at 80–250 packs per minute with pillow, 3-side or centre seal.
Suitable products
Chocolate bars
Biscuits and cookies
Candies and toffees
Bar-shaped snacks
Packing range
- Product width 20–80 mm, height 5–30 mm, length 50–250 mm
Speed
- 80–250 packs per minute

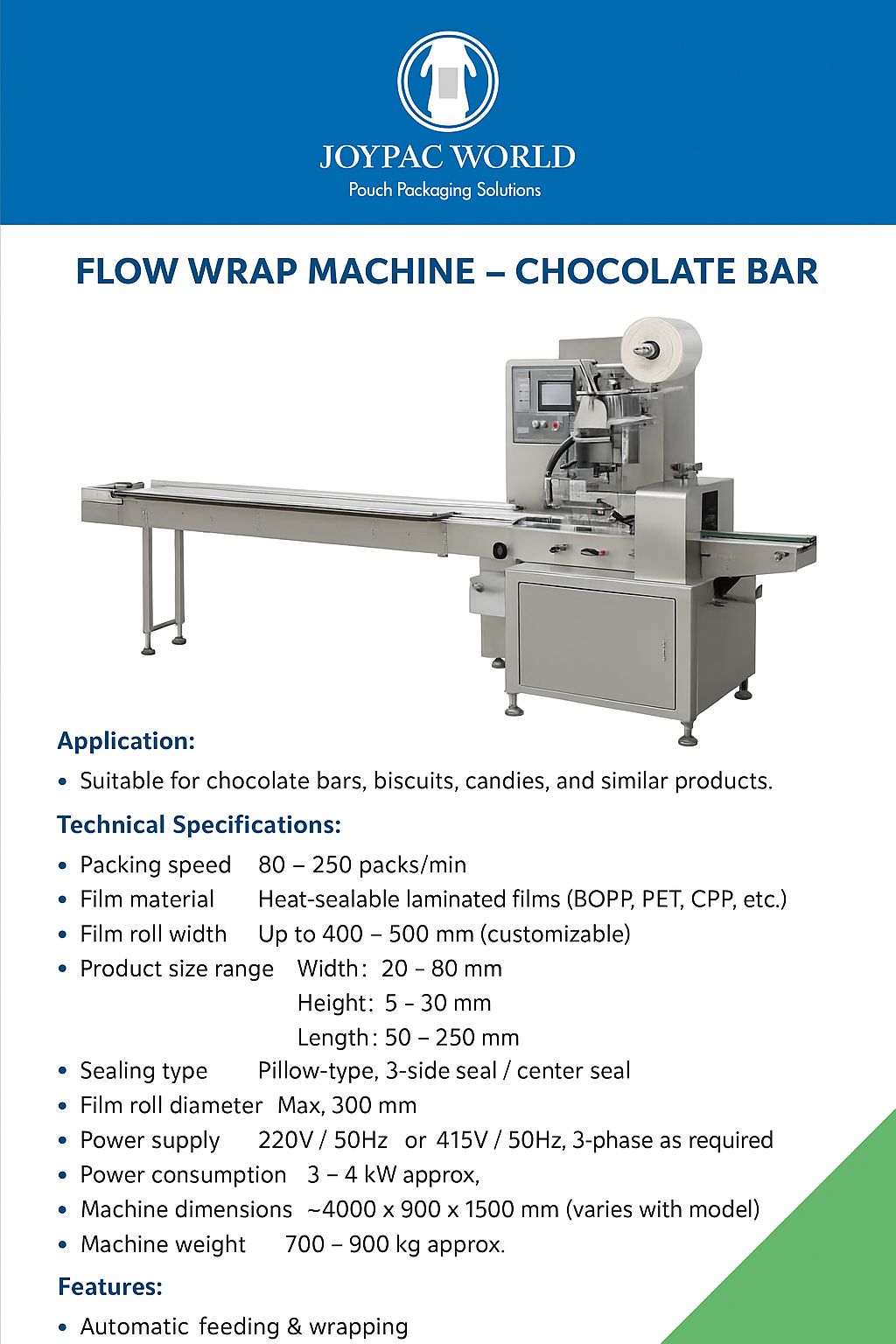

Technical specifications — JPW-FWM
| Specification | Detail |
|---|---|
| Packing Speed | 80 – 250 packs / min |
| Film Material | Heat-sealable laminated films (BOPP, PET, CPP) |
| Film Roll Width | Up to 400 – 500 mm (customisable) |
| Product Size Range | W 20–80 mm × H 5–30 mm × L 50–250 mm |
| Sealing Type | Pillow-type, 3-side seal / centre seal |
| Film Roll Diameter | Max 300 mm |
| Power Supply | 220V / 50Hz or 415V / 50Hz, 3-phase as required |
| Power Consumption | 3 – 4 kW approx. |
| Machine Dimensions | ~4000 × 900 × 1500 mm (varies with model) |
| Machine Weight | 700 – 900 kg approx. |
Why this machine
Features, advantages and optional add-ons
Key features
- Automatic feeding and wrapping
- Servo-driven film feed for accurate cut length
- PLC control with touch HMI
- Stainless steel construction with food-grade contact parts
- Date coder ready
JPW-FWM — frequently asked questions
- Which machine wraps chocolate bars?
- A horizontal flow wrap machine (JPW-FWM) wraps chocolate bars, biscuits and candies at 80–250 packs per minute in pillow, 3-side or centre seal formats.
- What film does the flow wrap machine use?
- Heat-sealable laminated films such as BOPP, PET and CPP, in roll widths up to 400–500 mm and a maximum roll diameter of 300 mm.
