What is a semi automatic servo auger filler machine used for?

It fills powders into pre-made pouches, jars, bottles or containers using a servo-driven auger. The operator places the container and presses a foot switch; the machine doses the set weight from 50 gm to 5 kg.

What filling accuracy does the semi automatic auger filler give?

±0.2% to ±1% depending on the nature of the powder — fine free-flowing powders sit at the tighter end of the range.

How fast is the Joypac semi automatic auger filling machine?

15 to 30 fills per minute, depending on the fill weight, powder behaviour and operator handling speed.

Can the machine handle non-free-flowing powders like spices and atta?

Yes. The hopper agitator and servo auger combination is designed for both free-flowing and non-free-flowing powders, including chilli powder, turmeric, atta, besan and nutraceutical blends.

Is the machine customisable?

Yes — Joypac World Technologies builds customised semi automatic servo auger filling machines to your fill range, hopper size, container type and utilities, with full after-sales support from Hyderabad.

JPW-SASAF

Semi Automatic Servo Auger Filler Machine

Name: Semi Automatic Servo Auger Filler Machine (JPW-SASAF)
Brand: Joypac World
SKU: JPW-SASAF
Availability: InStock

The Joypac Semi Automatic Servo Auger Filler Machine is a servo-driven auger doser that fills free-flowing and non-free-flowing powders into pre-made pouches, jars and containers from 50 gm to 5 kg with ±0.2% to ±1% accuracy at 15–30 fills per minute, using a PLC + HMI control system and SS-304 contact parts.

Request price Brochure

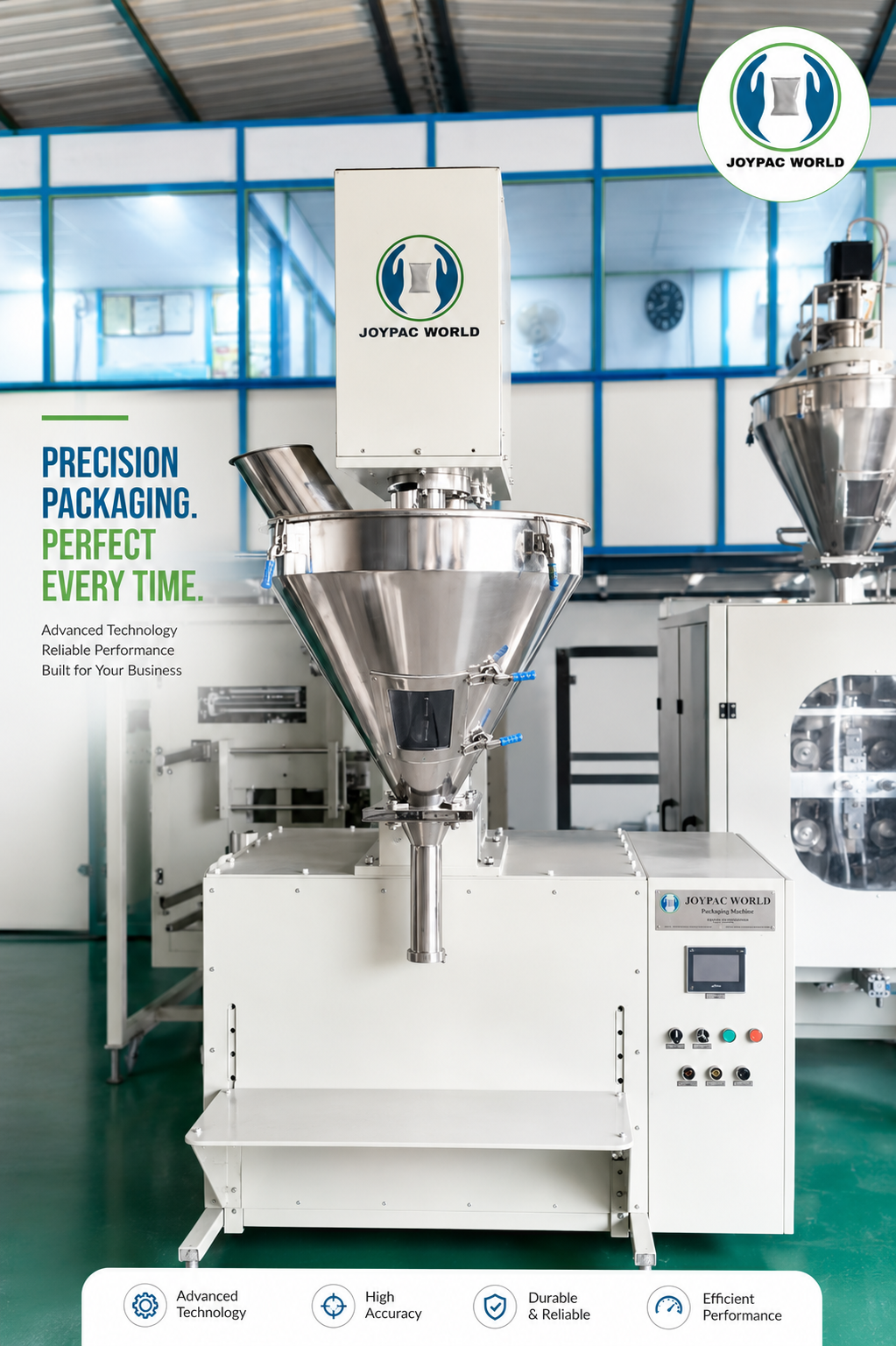

Semi Automatic Servo Auger Filler Machine JPW-SASAF manufactured by Joypac World, Hyderabad

Overview

Operator-assisted servo auger filler for accurate powder filling into pre-made pouches, jars, bottles and containers from 50 gm to 5 kg.

Suitable products

Spice and masala powders
Wheat flour (atta), maida, besan and sooji
Coffee, tea premix and beverage powders
Nutraceutical, ayurvedic and pharma powders
Detergent, chemical and pesticide powders
Milk powder, protein powder and food premixes

Packing range

50 gm – 500 gm
500 gm – 1 kg
1 kg – 5 kg

Speed

15–30 fills per minute (operator and product dependent)

Technical specifications — JPW-SASAF

Technical specifications
Specification	Detail
Machine Type	Semi automatic servo driven auger filler
Filling Range	50 gm to 5 kg (auger and hopper dependent)
Filling Accuracy	±0.2% to ±1% (depending on product nature)
Filling Speed	15–30 fills per minute
Filling System	Servo motor driven auger dosing system
Products Handled	Free-flowing and non-free-flowing powders
Container Type	Pre-made pouches, jars, bottles, tins and containers
Hopper Capacity	50 – 100 litres (with agitator / stirrer)
Control System	PLC with HMI touch panel and recipe memory
Drive	AC servo motor with servo drive
Machine Body	Stainless steel / MS powder coated
Product Contact Parts	SS-304 (SS-316L on request)
Power	1.5 – 2 KW, 230 V single phase / 415 V 3 phase, 50 Hz
Foot Switch	Pneumatic / electrical foot pedal for filling cycle
Dimensions (L×B×H)	800 × 800 × 2000 mm (approx.)
Machine Weight	250 – 350 kg (approx.)

Why this machine

Features, advantages and optional add-ons

Key features

Servo driven auger for repeatable, high-precision dosing
PLC with HMI touch panel — store multiple product recipes
Hopper agitator keeps non-free-flowing powders moving
Quick-release auger and tube for fast product changeover
Foot-switch operated filling cycle for single-operator use
SS-304 food-grade contact parts, easy to clean

Advantages

Low investment entry into accurate powder filling
Compact footprint — fits small production rooms
Ideal for multiple SKUs and frequent size changes
Reduces product giveaway compared with hand scooping
Can be upgraded later with conveyor and sealing machine

Optional accessories

Dust extraction system
Pouch / jar holding platform with height adjustment
Take-up belt conveyor
Pneumatic pouch sealing machine
Weighing platform for check-weighing
Static charge eliminator

Live videos

See the JPW-SASAF running

Watch on YouTube — @JoypacWorld

VFFS auger filling for fine powders
VFFS Servo Auger Filler Machine packing powders in pouches

Semi automatic / pneumatic auger filling
AFFS Pneumatic Auger Filler Machine for masala and powder packing

JPW-SASAF — frequently asked questions

What is a semi automatic servo auger filler machine used for?: It fills powders into pre-made pouches, jars, bottles or containers using a servo-driven auger. The operator places the container and presses a foot switch; the machine doses the set weight from 50 gm to 5 kg.
What filling accuracy does the semi automatic auger filler give?: ±0.2% to ±1% depending on the nature of the powder — fine free-flowing powders sit at the tighter end of the range.
How fast is the Joypac semi automatic auger filling machine?: 15 to 30 fills per minute, depending on the fill weight, powder behaviour and operator handling speed.
Can the machine handle non-free-flowing powders like spices and atta?: Yes. The hopper agitator and servo auger combination is designed for both free-flowing and non-free-flowing powders, including chilli powder, turmeric, atta, besan and nutraceutical blends.
Is the machine customisable?: Yes — Joypac World Technologies builds customised semi automatic servo auger filling machines to your fill range, hopper size, container type and utilities, with full after-sales support from Hyderabad.
